The solar rises because the small plane hits the frozen floor on the small island of Florø on the Norwegian west coast. My first guess was that the title meant “flowery island,” however it’s really derived from the title “Flora” which could originate from the phrase “Flóð” which implies “Sturdy present,” considerably applicable in regard to excessive energy electrical boats. Florø is the furthest western situated metropolis in Norway, and is about as far north as Anchorage, Alaska.

This December, a few inches of snow covers this fairytale panorama, and I’m pondering to myself that this nook of the world will likely be on my checklist of probably the most lovely locations I’ve ever seen. I lastly get what the planet builder Slartibartfast in The Hitchhiker’s Information To The Galaxy meant when he mentioned: “Did you ever go to a spot… I feel it was referred to as Norway? … That was considered one of mine. Received an award, you understand. Pretty crinkly edges.”

Crinkly certainly, and at present a transparent blue sky and no wind make the ocean stretching into the fjords look mirror-like. Evoy CCO Marte Rostrup Hofset has been accompanying me from Oslo the place she works out of Evoy’s workplace within the capital metropolis. Each infrequently she makes the one hour flight to the Evoy manufacturing facility, and at present she is my information.

Large Imaginative and prescient In Humble Setting

Evoy is an electrical marine propulsion startup based in 2018 by CEO Leif A. Stavøstrand, who welcomes us on the manufacturing facility. “I used to be the CEO of Norway’s largest oil and fuel provide base, however I felt that I needed to transfer on and attempt to get away from the first fossil gasoline business. I really like boats, and I discovered a strategy to make my ardour my dwelling, by the electrical propulsion know-how of the long run!”

Now, four years later, it’s clear that Leif’s imaginative and prescient is coming into fruition. Evoy is the office for 43 highly skilled people within the maritime enterprise. A tightly specified line of merchandise reveal themselves on the manufacturing facility ground. Some methods are going out as common orders to boat builders around the globe who set up them effortlessly into their merchandise, different methods are extra complicated and Evoy will help with ultimate meeting on the prospects website, whereas but some methods are nonetheless within the prototype stage.

Roughly talking there are two sorts of methods in Evoy’s lineup: inboard and outboard. Battery packs are at all times inboard, although. As we stroll across the manufacturing facility ground, COO Åge Højmark and manufacturing supervisor Taimoor Arif clarify the main points in regards to the methods, the working progress, and the technique of deployment. It’s the small issues that matter when your purpose is to scale up into a world market.

“Take the connectors, for instance,” Mr. Arif says, “we put lots of effort into ensuring the methods are sturdy in addition to plug and play, and that they can’t be assembled the incorrect means, so lots of thought goes into the form, operate, and ruggedness of the various connectors wanted.”

It’s fascinating to see the builds and take a look at benches on the manufacturing facility ground. Every thing is put collectively from the bottom up, and there are full-boat setups to check and specify the assorted set up necessities in regard to positioning and steadiness of sure sorts of hull, and there are stand-alone system exams, like a twin motor outboard system the place the synchronization of two usually impartial methods is setup by way of software program to work effortlessly and to the shoppers necessities. “We’re at a degree of scaling up considerably,” says Mr. Højmark, “and we’re able to assemble and ship lots of methods within the coming years.”

Pricing is determined by how a lot the boat builders do themselves, however in accordance with Evoy’s online configurator, a tough value vary throughout all system configurations is €85,000 to €340,000 ($90,000 to $360,000). And for example of a completed boat you should buy proper now, the Hydrolift E-22 is obtainable in Norway at a value starting at €133,000 ($142,000).

Thrill Journey

The snows squeaks underneath our ft on the boardwalk within the Florø harbor for the reason that temperature has solely gone up from about -10 levels C to a hotter -Eight C (18 F). Two boats await us: The inflexible hulled inflatable kind Goldfish X9 Explorer with a 400+ horsepower (peak 800) inboard system referred to as Hurricane, and the common V-shaped hull kind Axopar with a 300+ horsepower outboard prototype system referred to as Storm. The concept is to go in each boats and swap midway to get a way of the several types of hull and propulsion methods. I begin within the X9.

Often I’m in no way completely satisfied about freezing temperatures, however on this situation, with the anticipation constructing of what’s coming, and the actual fact I’m carrying a survival swimsuit in addition to real Norwegian socks — I’m boiling inside. We head out to get some room round us, and after having fun with the unbelievable surroundings round us for a couple of minutes, ultimately the query arises from Mr. Stavøstrand: “Would you prefer to strive?”

I imply, I’ve skilled electrical propulsion methods in automobiles for a few years, and some hundred kW of immediate energy has not shaken my stance these days, however I used to be not ready for this. So quiet and civilized at low speeds, however while you push that throttle…

Possibly it’s the unfamiliar sound of gears and propellers, perhaps it’s the unfamiliar buildup of pace, accompanied with the shortage of stationary reference factors round you. The phrase exhilarating doesn’t do the feeling justice, as a result of it was completely insane!

To begin with, you’re standing up straight! And second, you’ll be able to solely have one hand on the wheel, as a result of you’ll want to have your different hand on the throttle always. This implies your stance is form of bad-ass-bring-it-on whether or not you’re that kind or not. And when you stand straight and maintain on to about two metric tonnes of equipment leaping ahead like a cheetah, the entire thing tilts backward decreasing the rear and rising the entrance. A few clicks on a button on the throttle tilts the counter rotating twin propeller sterndrive downward to take care of traction.

In what looks like no time in any respect, the X9 reaches over 50 knots (60 mph/90 km/h) and a look on the energy meter reveals 410 kW! That’s 550 horses kicking up water! It is rather chilly and the battery has not reached optimum working temperature but permitting for the final 250 horses to be let unfastened (totaling 600 kW). Actually, at this level I ought to have been just a little intimidated and possibly not keen to have my face whipped chilly with icy water for longer, however opposite to my anticipation I needed extra!

Some slightly bulgy bow waves from a cargo ship that handed a couple of minutes earlier had been closing in and as a substitute of slowing down, one thing satisfied me that this machine was constructed for the tough, and with out hesitation, and no objection from Leif standing subsequent to me, I held the X9 heading in the right direction, planing at its greatest, as we hammered by the bow waves making a number of jumps, sufficiently big to make my information Marte shout that she misplaced her hat!

Subsequent up was the Axopar. For leisure, that is the best way to go. Later in Oslo I’d be making an attempt a smaller boat with a 120 horsepower displacement, however this one has a 300+ horsepower prototype outboard, with the identical lengthy vary battery because the X9. The lengthy vary twin module battery configurations on the X9 and Axopar makes 800 Volt propulsion doable and is vital to the excellent efficiency achievements. The height efficiency of this outboard system, appropriately referred to as Storm, has not been decided but, since it’s nonetheless being validated.

The gearing within the Axopar is a conventional outboard setup with mechanical reverse. Evoy doesn’t construct the transmissions in-house, however makes use of the properly confirmed decrease leg methods obtainable. Thus the electrical motor is about to solely be capable to run in a single course, and use the mechanical reverse whereas clearly capping the ability output. When producers ultimately do present gearing made for electrical propulsion, Evoy will shift to that and easily reprogram the management software program to make the motor run backwards when reversing.

In any case, this outboard system appears a lot quieter than the inboard. It nonetheless makes a roar at full energy, however having solely a single rotating propeller versus the X9, it’s useless quiet at speeds under 7 knots (Eight mph/13 kph). Good for fishing and tourism within the wild. Don’t let the elegant exterior idiot you, although. The powerhouse bolted to the rear of this hull throws a critical punch, and similar to the X9, you must maintain on tight when pushing the throttle. What a blast! Surpassing 45 knots and 300 kW (400 HP) of energy output, it’s clear that this factor has extra to present, however frankly, I feel my eye sockets had been freezing up and the accountable factor to do was at hand the beast again over to Leif.

Evening Journey

Again on shore, I had a number of questions in regards to the technical specifics answered by CTO Marius Dyrseth, and as he gave me a journey to the airport it was clear it could be darkish earlier than I reached Oslo. I used to be to satisfy up with gross sales supervisor Thomas Mordt Kolstad, who would exhibit the smaller 120 horsepower outboard system referred to as Breeze.

Downtown Oslo that night was just about a winter wonderland. The temperature was again right down to -10 levels C (14 F), and snow was falling gently, no wind in any respect. The harbor space was full of individuals, and all you might hear was chattering and the squeaks from strolling in recent snow. Out on the water, electrical ferries got here and went in full silence. It was a dream-like surroundings.

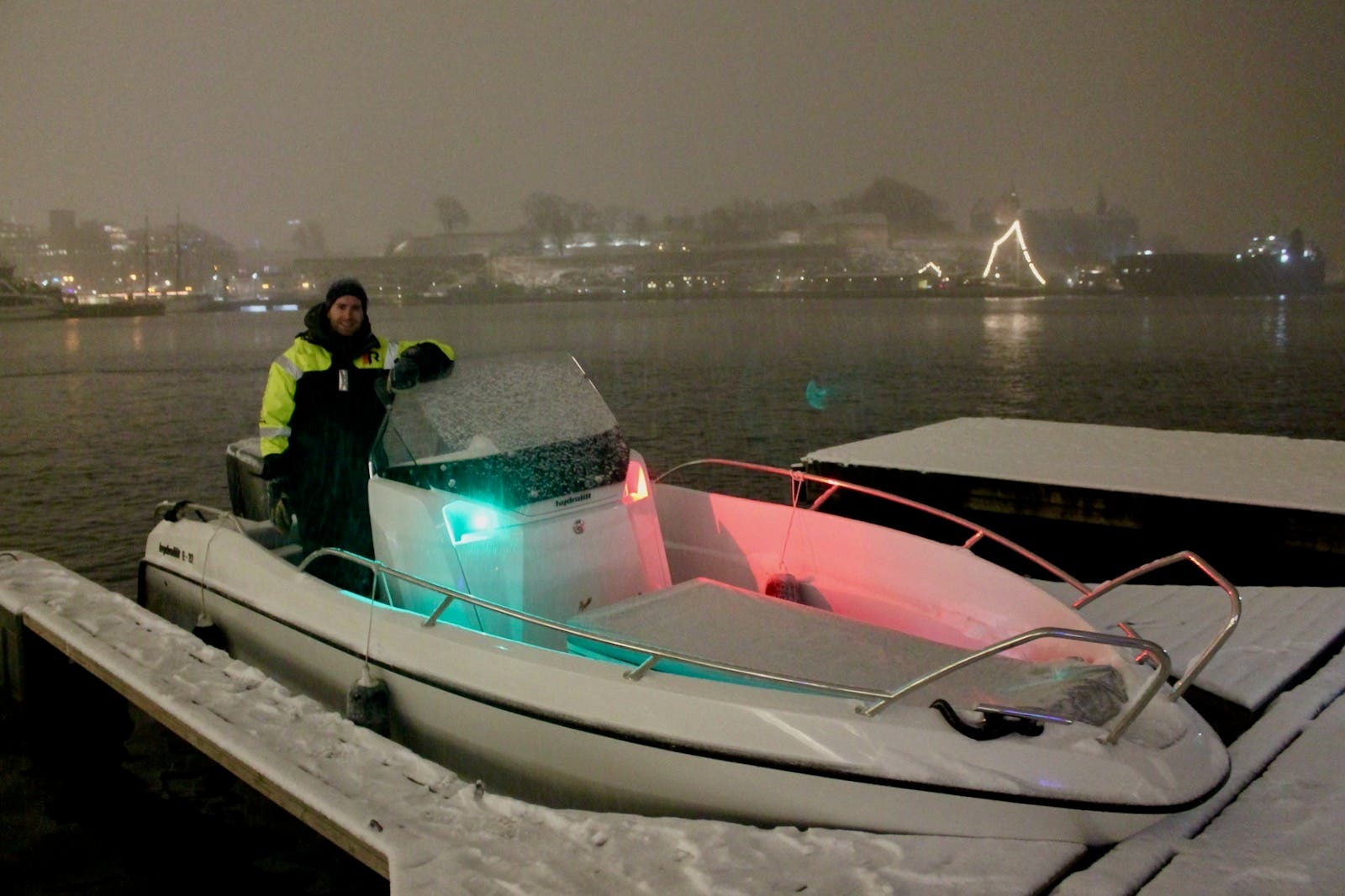

Mr. Kolstad welcomed me onboard the smooth Hydrolift E-22 parked on the electric-vessel-only dock, and we headed out into the darkness. This outboard system can also be useless quiet at low speeds, however although it’s underneath half the ability of the Axopar’s Storm system, it was amply able to getting a transfer on. Getting above planing pace which happens round 18 knots (21 mph/33 kph) virtually looks like a single soar ahead.

Blasting ahead into the darkness reaching 35 knots and passing a ferry, I requested Thomas if he knew the place he was going? He assured me to not fear, and requested me to take over. My braveness lasted for about 10 seconds. Complete darkness and snow wiping into my eyes. Enjoyable is such a small phrase!

We rotated and glided again to the dock amongst ferries and Norwegians in floating saunas (sure!) with probably the most superb December vacation lighting because the backdrop, I needed to pinch myself…

Boat Dynamics

It takes some getting used to when desirous about vary in an electrical boat. Energy consumption associated to hurry in a ship is in no way as intuitive as with automobiles. When driving a automotive, you’ve got just a little little bit of rolling resistance, however the joker is wind resistance on the ahead dealing with floor, which rises to the sq. of the pace. It’s fairly simple to preserve energy in a automotive: simply decelerate.

Nonetheless, on a ship you’ve got a phenomenon referred to as hull pace or displacement pace which is the pace at which the wavelength of a vessel’s bow wave is the same as the waterline size of the vessel. As boat pace will increase from a standstill, the wavelength of the bow wave and top of the crest-to-trough will increase, thus at hull pace you might be basically using uphill on the tail of that crest of the bow wave, which may be very inefficient. Growing energy hardly will increase pace, it simply makes the bow wave larger.

To extend effectivity you’ve got a selection, both you keep means under hull pace or begin planing, i.e. improve the pace to the purpose the place the hull begins skipping on the water excessive of the bow wave versus plunging into it, thus transferring the bow wave backward and reducing its crest-to-trough top to attenuate its affect. That is solely doable with a hull designed for planing: the flatter the underside of the hull, the simpler it will probably do planing. Like skipping stones on a lake: a flat stone skips, a spherical stone doesn’t.

I noticed that going 11 knots within the Axopar consumed a steady 45 kW, however when easing off to five knots it declined to 14 kW. Little or no vitality is used under hull pace, thus reducing the pace to 1 knot solely consumes 1 kW. Go gradual for distinctive vary, or go quick in the event you don’t have all day. The Axopar is 25 ft lengthy (7.6 meters), and its hull pace is calculated as 1.34 knots x 25 ft squared = 6.7 knots (in all probability a bit decrease since its waterline is considerably lower than 25 ft). Above the hull pace, vitality consumption rises dramatically, till the purpose of planing.

Now, chances are you’ll be pondering that every one this seemingly extra energy is not sensible, and carrying all these heavy batteries is pointless, and in a slender use case situation you’ll be proper, however energy isn’t just enjoyable, it’s important in a complete vary of maritime purposes. Suppose tour operators, aquaculture, offshore companies like vitality and coast guard, rescue vessels, and even small ferries. The identical system can do excessive pace transport with a small flat hull vessel, in addition to low pace hauling with a giant bulge hull vessel.

I confirmed the graph above to Leif and he feedback:

“We regularly confer with hull pace to information our stakeholders and prospects what pace to make use of. With electrical boats it turns into very evident as you get a direct and correct suggestions on consumption per distance sailed. The 6 — 18 knots band as you point out is a no-go as you should use Three occasions the vitality in 10 — 12 knots than at 5 or 25 knots. So the hump you present from 6 — 18 knots is definitely important greater on a airplane hull boat.”

Leif explains additional that the very exact consumption readouts make it so much simpler to optimize trim, and weight distribution, in addition to observe exact water present instructions in a fjord or harbor. For instance, when Leif travels to his mother and father’ place he can have under four kWh/nm (nautical mile) a method and over 5 kWh/nm the opposite means on the identical route throughout the similar hour. And that’s on a large and open fjord, so it’s shocking how a lot the present impacts the vary. To a sure diploma, much more than the wind.

To summarize: Vitality consumption with electrical boats is much more sophisticated to estimate than with electrical automobiles. Kudos to Evoy for making a person interface really easy to learn and perceive, and deem vary anxiousness a non-issue. With the large dynamic vary of energy from electrical methods normally, you don’t want as many alternative sizes of displacement. Take the Hurricane inboard system for example and picture a twin system on a small ferry at low pace with a extra satisfactory usable vary. Evoy need to cowl as many purposes as doable with as few methods as doable in an effort to scale up successfully.

Energy Electronics

During the last four to six a long time the event of energy electronics has made it doable to manage ever extra energy electronically. Merging electrical machines corresponding to motors and turbines with nonetheless sooner digital inverters at a nonetheless cheaper price, has allowed a wide range of recent other ways to transform energy backwards and forwards between electrical, mechanical (rotational), and thermal vitality.

Evoy has chosen SiC MOSFET (Silicon Carbide Metallic Oxide Semiconductor Discipline Impact Transistor) in its DC/DC conversion electronics, and Si IGBT (Silicon Insulated Gate Bipolar Transistor) within the inverter that produces AC present for the motor. Which sorts of energy semiconductor applied sciences are utilized by electrical drivetrain producers have modified through the years. All of them have their professionals and cons.

To the shoppers, the important thing concern must be whether or not the mechanical and thermal design has been performed meticulously and all obtainable information for all of the parts have been scrutinized. Typically, it is kind of unattainable to acquire a dependable affirmation of those and associated questions. Nonetheless, relentless actual world testing in addition to intentional rugged engineered of the thermal administration of all components of the system, will guarantee dependable excessive energy operation underneath excessive climate circumstances in all components of the world.

Oh, and it must be talked about that, like with automobiles, the distinction of energy supply between an electrical drivetrain and a conventional fueled drivetrain by way of rpm and torque makes it possible to have a look at different issues just like the bodily design of hulls and propellers. Let’s simply say I noticed issues on the manufacturing facility ground that I didn’t anticipate to see.

Controls

Evoy software program can monitor a system put in in a vessel 24/7 and deploy Over-The-Air (OTA) software program updates. This retains methods in day by day use updated and supply simpler distant diagnostics and upkeep. Nextfour in Finland supplies the screens onboard in varied sizes, and with single or twin display screen choices.

Evoy’s management system is named E-Mind, as a touch to the corporate’s realization that this aspect of software program prowess is essential for his or her success. Evoy has developed their very own app for person comfort. That is no totally different from electrical automobiles, the place the basic software program structure has to work seamlessly in an effort to preserve the client completely satisfied.

Charging

After all there’s a problem in the case of charging, and from what I’ve seen in Norway it’s apparent you must prioritize dock chargers, which they actually do!

I can think about photo voltaic installations be viable on this regard, particularly on small uninhabited islands. Boats is likely to be in dock longer than automobiles are in parking heaps, so some extent of native energy era will make sense. As light-weight foldable photo voltaic cells scale up, perhaps these may very well be rolled out on the water to supply actual offshore charging. It actually makes extra sense than transporting fossil fuels round. Nonetheless, winter darkness is clearly a problem.

Beginning in 2023, a Swedish-Norwegian joint project will set up over 400 charging stations alongside the Swedish and Norwegian coastlines. Spanning from Göteborg to Strömstad in Sweden and persevering with alongside the Norwegian coast line from Oslo to Kristiansand, the charging infrastructure would be the first of its sort in Europe.

And naturally automobiles and boats can share chargers if bodily put in to achieve each:

From Right here On

As I discussed, Evoy is specializing in scaling huge globally comparatively quick and the means to take action successfully is to focus on few and modular methods. The correct quantity of motor configurations in varied energy ranges mixed with a streamlined, modular, and rugged method to battery packs will lead to lots of totally different choices that can match an enormous vary of boat sizes and kinds. Motors and management methods will proceed enhancing as a consequence of ever growing prototype testing and OTA suggestions from actual world purposes, and on prime of that there’s the good thing about the truth that battery know-how simply retains getting higher, lighter, and cheaper. That’s true for all transportation industries, and what advantages, say, electrical automobiles, will clearly additionally profit electrical vessels. Weight and ruggedness are key elements right here.

The way forward for electrical transport is de facto thrilling, and although I’ve been specializing in automobiles for now, I’m very completely satisfied to find that the world of marine transport goes to be no much less exhilarating! I bear in mind driving an electrical automotive for the primary time in 2011 and pondering: I would like one! Now, I’ll always remember my first journey on a robust electrical boat, as a result of my first thought was: I would like one!

The Boats

From the Evoy website:

Evoy means “Electrical Voyage.” A voyage is by definition “a protracted journey involving journey by sea or in house.” For Evoy, this implies sea journey. A minimum of for now.

Goldfish X9 Explorer:

• Size: 31 ft (9.7 meters)
• Hull complete displacement: 2 tonnes (4410 lb)
• Prime pace: 60+ knots
• Vary at 32 knots (airplane above hull pace): Approx. 48 minutes/26 nm
• Vary 5 knots (under hull pace): Approx. 12 hours/60 nm

Propulsion system: Evoy Hurricane inboard (obtainable now)

• Motor kind: Liquid cooled 3-phase AC PM
• Motor weight: 220 kg (485 lb)
• System weight excl. battery: 300 kg (661 lb)
• Motor energy output nom. 400 HP (300 kW) — peak 800 HP (600 kW)
• Motor torque: nom. 770 Nm — peak 1500 Nm
• Motor RPM: nom. 3750 — peak 6000
• Drivetrain kind: Sterndrive gear ratio 1:87 twin contra-rotating propellers
• Waterproof: IP 66
• Controller: E-Mind proprietary design by Evoy with OTA updates & diagnostics
• Inverter: Si IGBT
• DC/DC: SiC MOSFET
• Energy: 365 VDC x 2 = 730 V at peak 1000+ A

Battery:

• Cell kind: NMC
• Pack weight: 760 kg (1675 lb)
• System weight excl. motor system: 780 kg (1719 lb)
• Pack capability: 126 kWh (112 kWh usable)
• Waterproof: IP 67
• Discharge/cost: 2C/1C (1000/500 A)
• Charging cycles: 3000 with 70% DOD

Charger:

• AC: 22 kW (44 kW choice)
• DC: as much as 200 kW

Axopar:

• Size: 25 ft (7.6 meters)
• Hull complete weight: 1.Eight tonnes (3970 lb)
• Prime pace: 45+ knots
• Vary at 25 knots (airplane above hull pace): Approx. 1 hour/25 nm
• Vary 5 knots (under hull pace): Approx. 14 hours/70 nm

Propulsion system: Storm outboard (obtainable 2023)

• Motor kind: Liquid cooled 3-phase AC PM
• Motor weight: 270 kg (595 lb)
• System weight excl. battery (outboard + inboard components): 350 kg (772 lb)
• Motor energy output nom. 300 HP (222 kW) (Peak not verified)
• Motor torque: nom. 550 Nm (Peak not verified)
• Motor RPM: nom. 4200 — max 6000
• Drivetrain kind: one leg gear ratio 1:87 with mechanical reverse
• Waterproof: IP 66
• Controller: E-Mind proprietary design by Evoy with OTA updates & diagnostics
• Inverter: Si IGBT
• DC/DC: SiC MOSFET
• Energy: 365 VDC x 2 = 730 V at peak 1000+ A

Battery:

• Cell kind: NMC
• Pack weight: 760 kg (1675 lb)
• System weight excl. motor system: 780 kg (1719 lb)
• Pack capability: 126 kWh (112 kWh usable)
• Waterproof: IP 67
• Discharge/cost: Nom. 2C/1C (1000/500 A) Peak 4C/-
• Charging cycles: 3000 with 70% DOD

Charger:

• AC: 22 kW (44 kW choice)
• DC: as much as 200 kW

Hydrolift E-22

• Size: 25 ft (6.7 meters)
• Hull complete weight: 1500 kg
• Prime pace: 35 knots
• Vary at 20 knots (airplane above hull pace): Approx. 1 hour/20 nm
• Vary 5 knots (under hull pace): Approx. 7 hours/35 nm

Propulsion system: Breeze outboard (obtainable now)

• Motor kind: Liquid cooled 3-phase AC PM
• Motor weight: 190 kg (418 lb)
• System weight excl. battery (outboard + inboard components): 250 kg (550 lb)
• Motor energy output nom. 120 HP (90 kW) — peak 185 HP (137 kW)
• Motor torque: nom. 170 Nm — peak 270 Nm
• Motor RPM: Nom. 4900 — peak 6000
• Drivetrain kind: one leg gear ratio 1:87 with mechanical reverse
• Waterproof: IP 66
• Controller: E-Mind proprietary design by Evoy with OTA updates & diagnostics
• Inverter: Si IGBT
• DC/DC: SiC MOSFET
• Energy: 365 VDC at peak 500+ A

Battery:

• Cell kind: NMC
• Pack weight: 380 kg (837 lb)
• System weight excl. motor system: 400 kg (881 lb)
• Pack capability: 63 kWh (56 kWh usable)
• Waterproof: IP 67
• Discharge/cost: Nom. 2C/1C (1000/500 A) Peak 4C/2C
• Charging cycles: 3000 with 70% DOD

Charger:

• AC: 6.6 kW (choice 22 kW)
• DC: as much as 200 kW

And the sound? Flip up the quantity…

Hat tip to my good friend engineer Steen Carlsen M.Sc. E.E. for his assistance on the ability electronics half.
